Product Detail

Product Information:

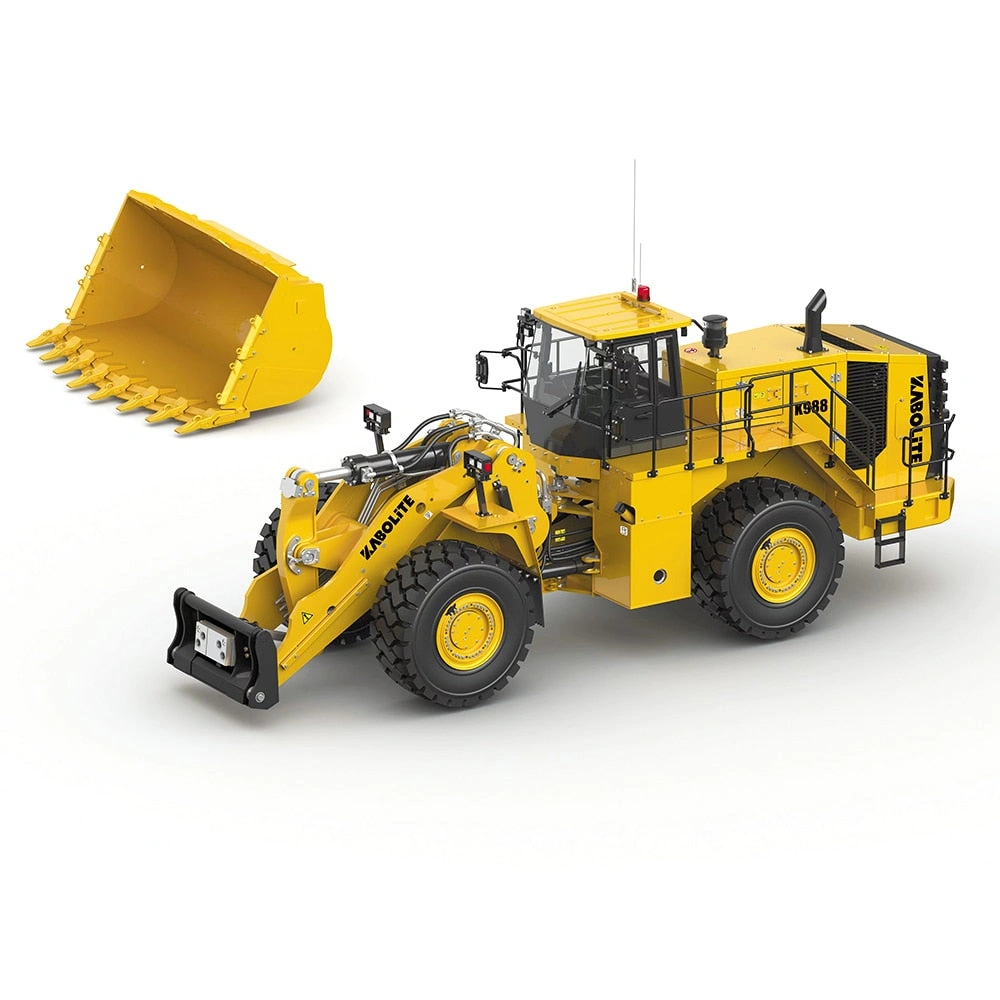

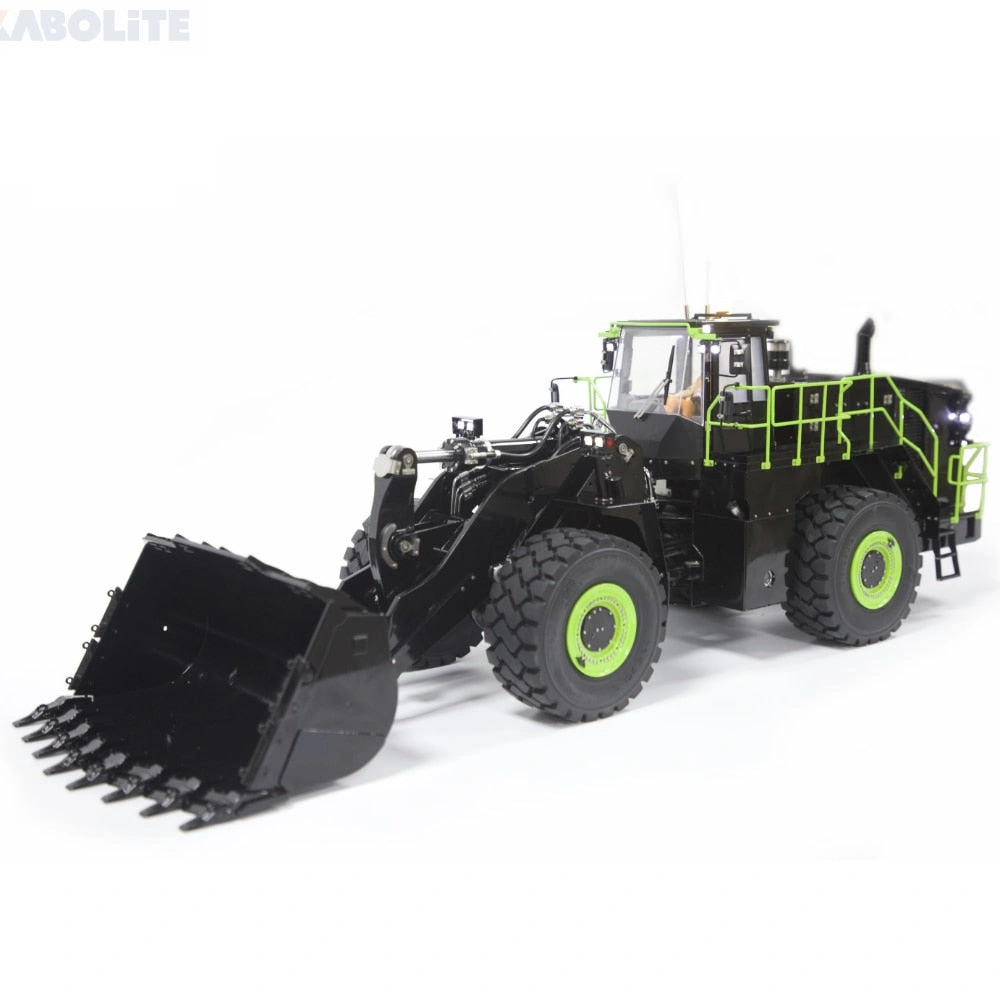

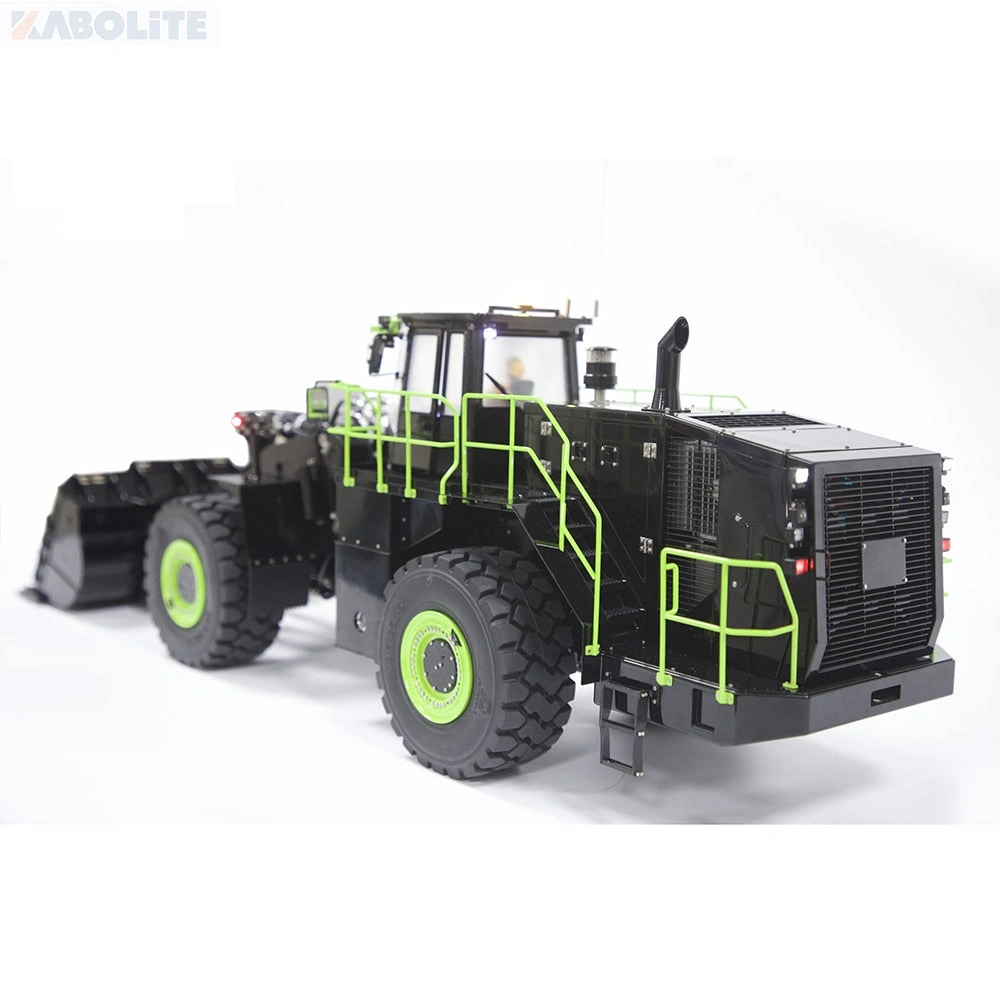

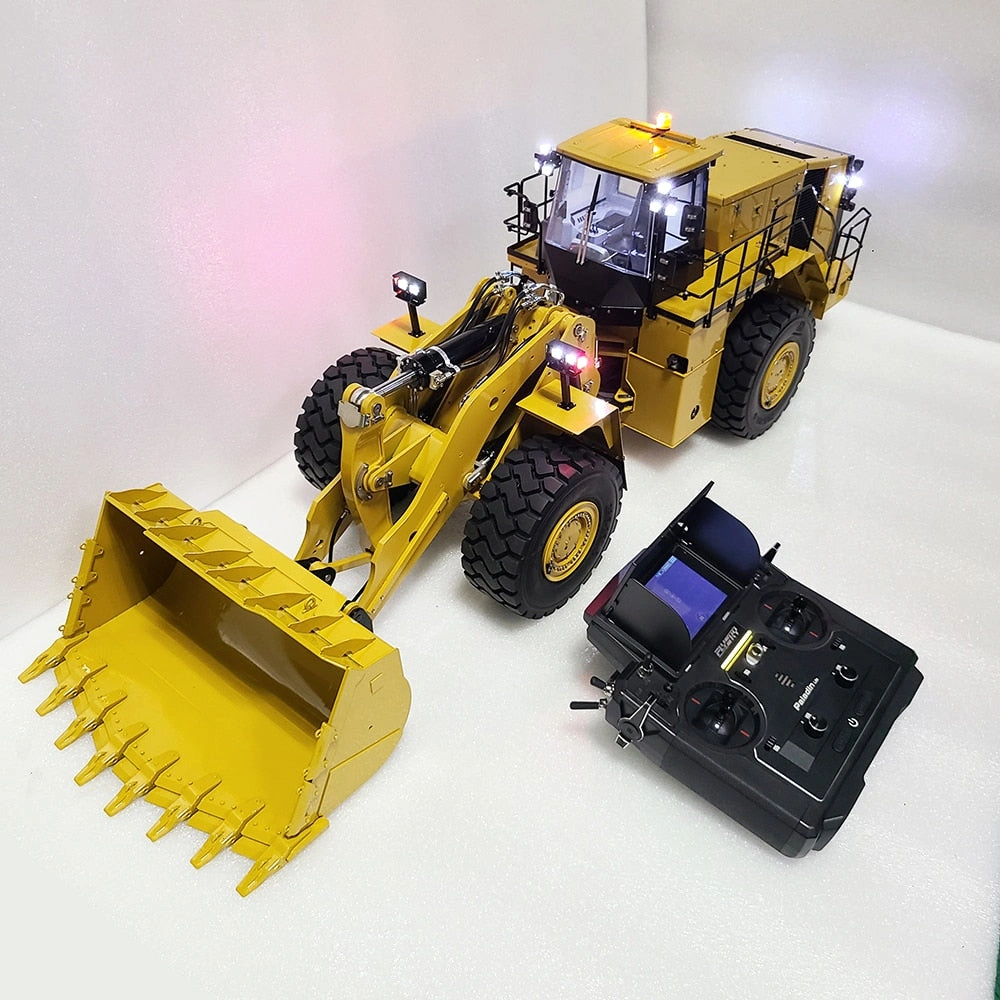

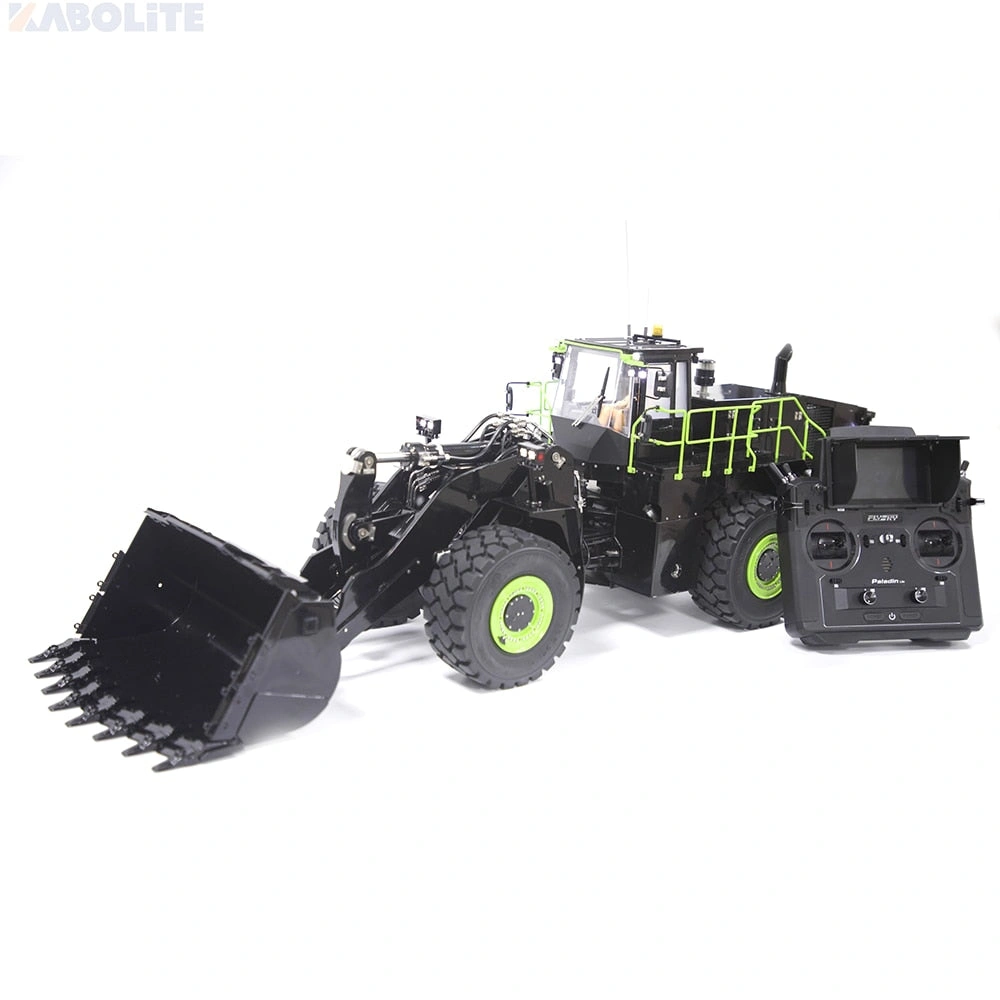

- Model: Kabolite 988-100S RC Loader
- Product Size: 903mm x 247mm x 296mm
- Product Weight (Bare Car): 23.5 kilograms
- Packing Method: Aluminum-wood composite board box + corrugated box
- Inner Box Size: 101cm x 32cm x 36cm
- Outer Box Size: 102cm x 34.5cm x 38.5cm
- Packing Quantity: 1
- Gross Weight: 28.5 kilograms
- Net Weight: 25.5 kilograms

Basic Numbers:
- Energy Type: 3S Lithium Battery
- Maximum Power: 83 Watts
- Length/Width/Height: 903mm x 296mm x 280mm
- Wheelbase: 324mm
- Rear Axle Centerline to Bumper: 299mm
- Centerline of Pitch Shaft to Tooth Tip of Bucket: 350mm
- Bottom Bell Link Chain Nest: 43mm
- Ground to Front Axle Center: 69.8mm
- Ground to Top of ROPS (Roll Over Protective Structure): 296mm
- Ground to Top of Exhaust Pipe: 281.8mm
- Bumper Landing Clearance: 76mm
- Clearance at Maximum Lift: 264mm
- Protrusion Distance at Maximum Lift: 180mm
- Bucket Hitch Height at Maximum Lift Height: 401mm
- Maximum Overall Height when the Bucket is Lifted: 555mm
- Wheel Base: 247mm
- Bucket Capacity: 1942 cubic centimeters
- Speed: 2000-5000 RPM
- Maximum Turning Radius: 43 degrees
- Machine Quality: 20-21 kilograms
- Lifting Force: 15-25 kilograms
